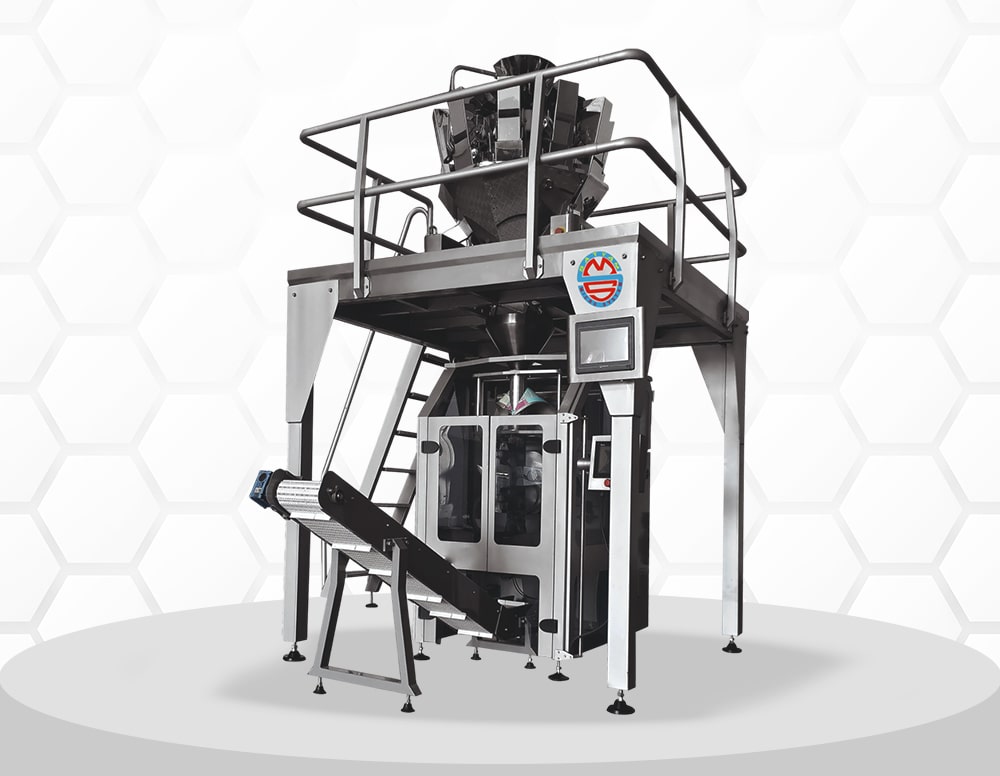

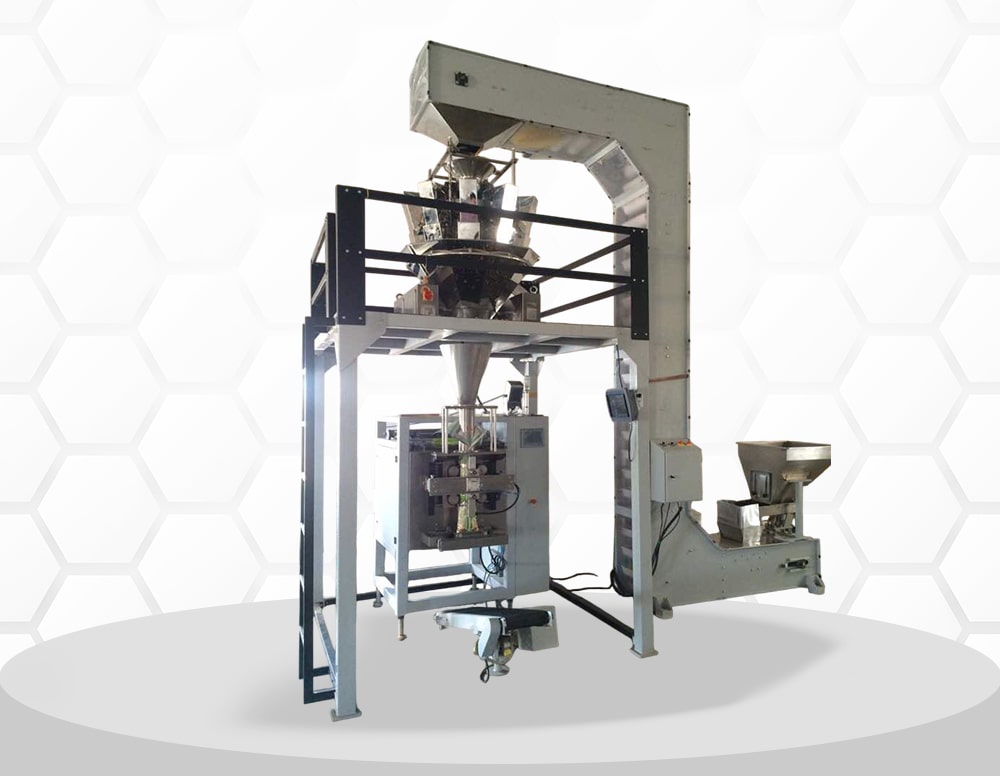

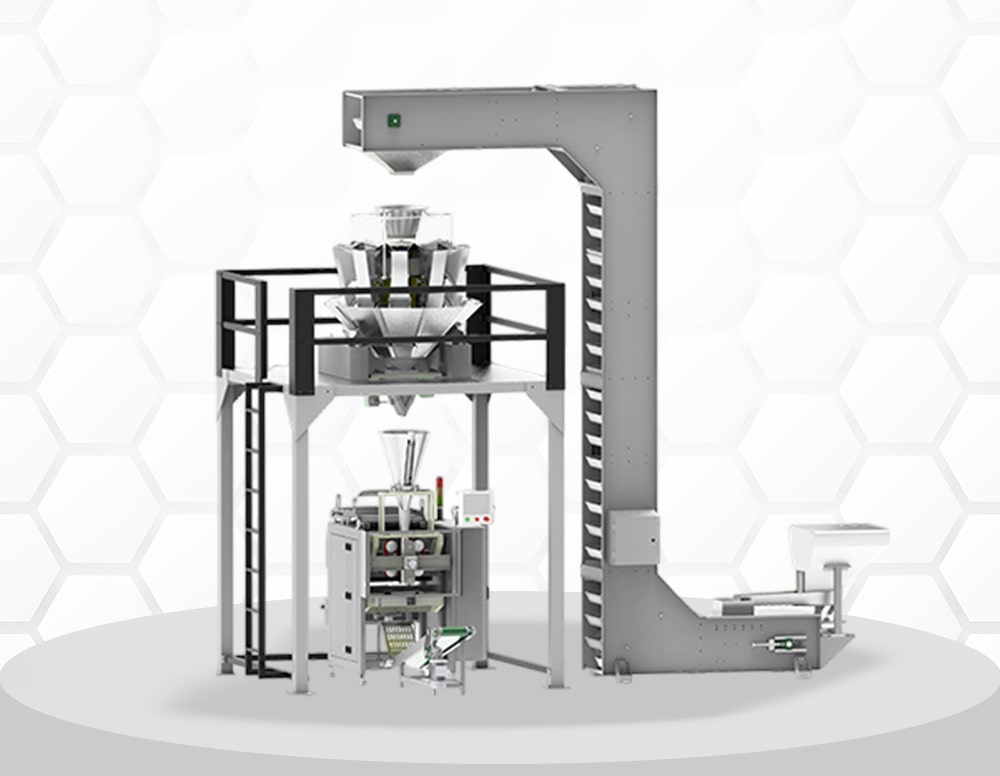

Automatic Vertical Form Fill and Seal (VFFS) Pouch Packing Machine with 10 multi Head Weigh Filler
The 10 Multi-Head Weigh Filler integrated with a VFFS system is designed for high-speed, high-accuracy packaging of granular products like namkeens, dry fruits, snacks, and other free-flowing items. With intelligent weighing algorithms and individual head control, it ensures precise filling with minimal wastage. This machine is ideal for high-throughput operations requiring consistent performance and packaging quality.
| Particular | Details | |
|---|---|---|
| Speed *** | Up to 75 pouches per minute *** | |
| Volume to be packed*** | 5gms to 50 gms, 20 to 100 gms, 100 to 1000 gms *** | |
| Packaging film material | Any type of heat sealable laminated film in roll form | |
| Pouch size | Min: 70 x 80 mm to Max: 250 x380 ( in mm) | |
| Maximum film roll diameter | 500 mm*** | |
| Power supply | 415V, AC 220-230V, 50 hz 3 Phase | |
| Connection load | Up to 11.5 Kw | |
| Air consumption: | 3.35 m3 / hr @ 6 bar | |
| Machine weight: | Up to 1500 kgs | |
| Machine Dimensions | ||
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
