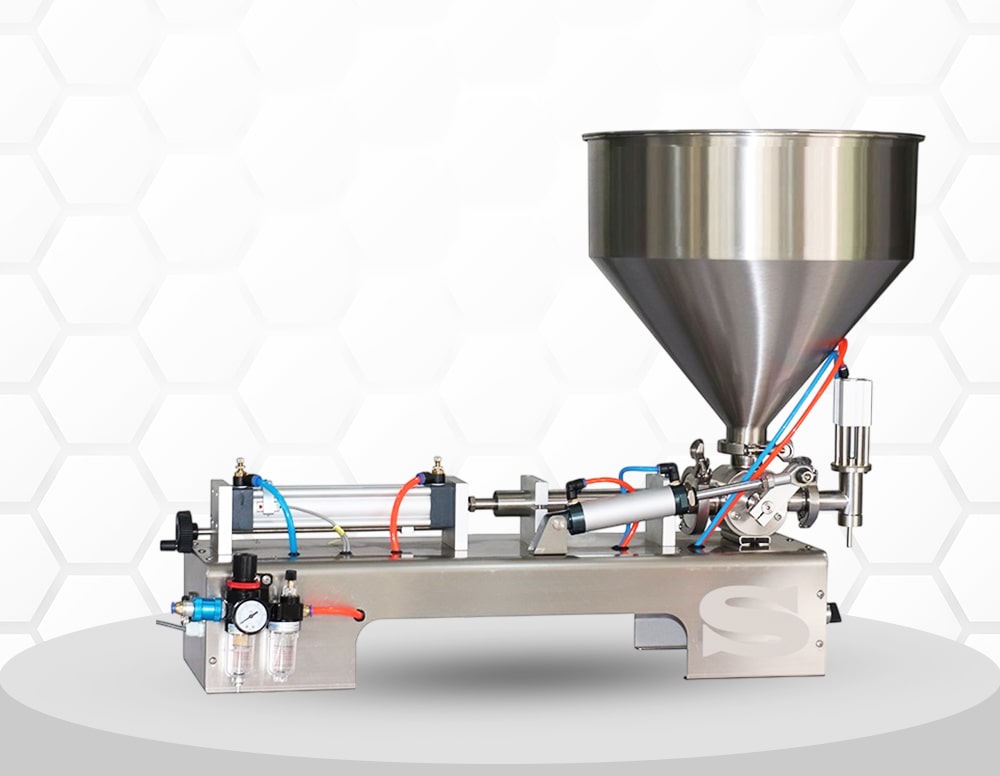

The Volumetric Liquid Packing Machine with Piston Filler is engineered for precise and hygienic packaging of low to high-viscosity liquids. Utilizing a piston-based filling system, it delivers accurate volume control and smooth operation across a range of liquid products—from water-thin fluids to thick pastes and sauces. Integrated with a VFFS system or pre-formed pouch packer, it is ideal for industries demanding consistent, spill-free filling.
| Particular | Details |
|---|---|
| Filling System | Piston-based volumetric |
| Fill Range | 50ml – 1000ml (customizable) |
| Accuracy | ±1% or better |
| Speed | Up to 20–35 packs per minute |
| Pouch size | Min: 70 x 80 mm to Max: 250 x380 ( in mm) |
| Max. roll diameter | 350 mm |
| Power supply | 220-230V, AC 50 hz 3 Phase (*customizable as per your requirement ) |
| Connection load: | Up to 4.5 Kw |
| Air consumption: | 3.35 m3 / hr @ 6 bar |
| Machine Weight | Up to 700 kgs |
| Machine Dimensions | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | |
