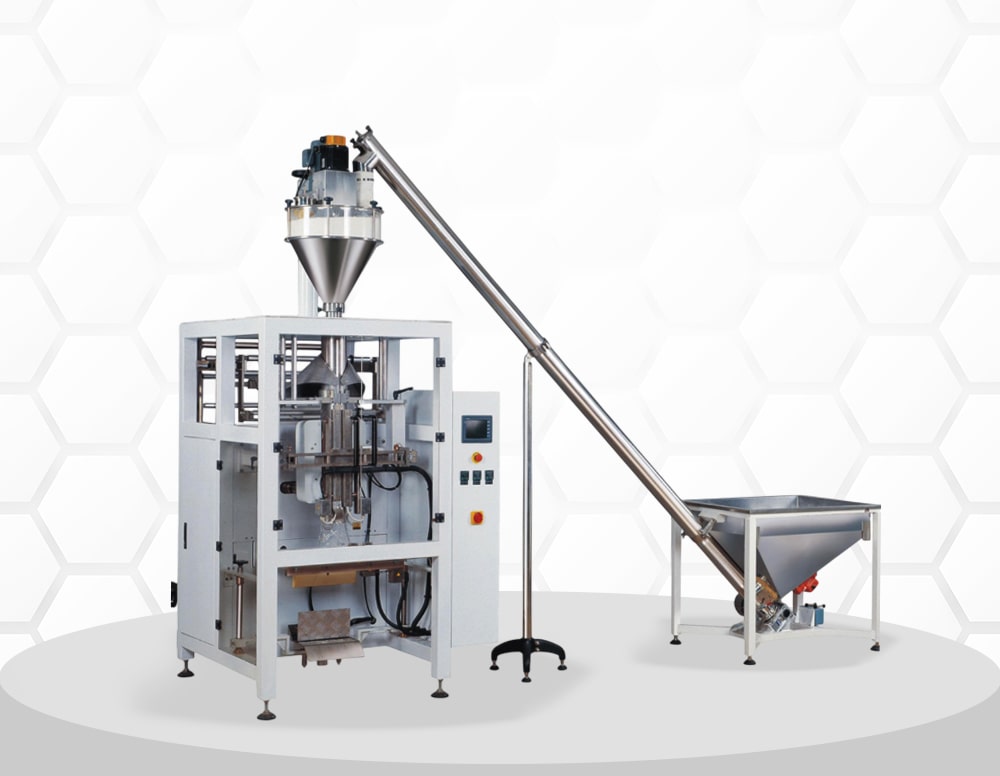

The Vertical Form Fill and Seal (VFFS) Machine with Servo Auger Filler and Automatic VFFS machine is a state-of-the-art packaging solution designed for precise packaging of powdered products. Engineered for industries such as food, pharmaceuticals, chemicals, and cosmetics, this advanced VFFS machine combines cutting-edge servo technology for enhanced filling accuracy and operational efficiency. The servo auger filler and servo bag pulling system work in perfect harmony to ensure fast, reliable, and high-precision packaging, making it the ideal choice for businesses seeking to optimize their packaging process while reducing operational costs.
| Particular | Details |
|---|---|
| Speed *** | Up to 50 pouches per minute *** |
| Volume to be packed*** | 10 gms to250 gms, 250 gms to 1000 gms, 1 kg to 5 kgsm 5 kgs to 10 kgs |
| Packaging film material | Any type of heat sealable laminated film in roll form |
| Pouch size | Min: 70 x 80 mm to Max: 250 x380 ( in mm) |
| Maximum film roll diameter | 750 mm*** |
| Power supply | 415V, AC 220-230V, 50 hz 3 Phase |
| Connection load | Up to 11.5 Kw |
| Air consumption: | 3.35 m3 / hr @ 6 bar |
| Machine weight | Up to 1500 kgs |
| Machine Dimensions | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | |
