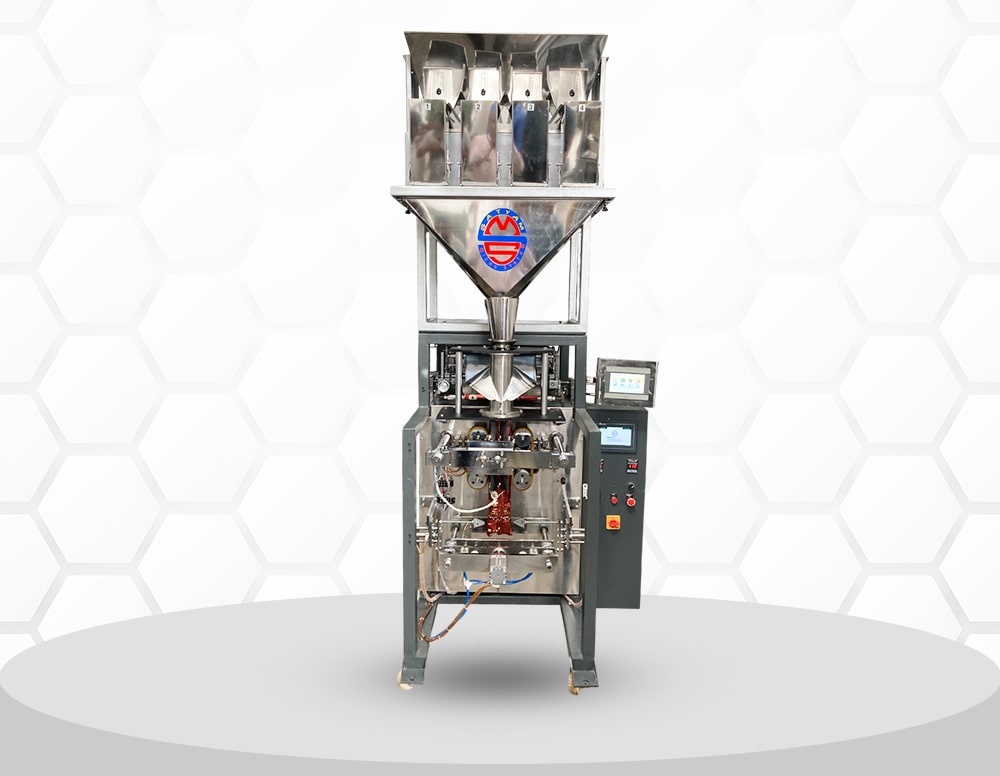

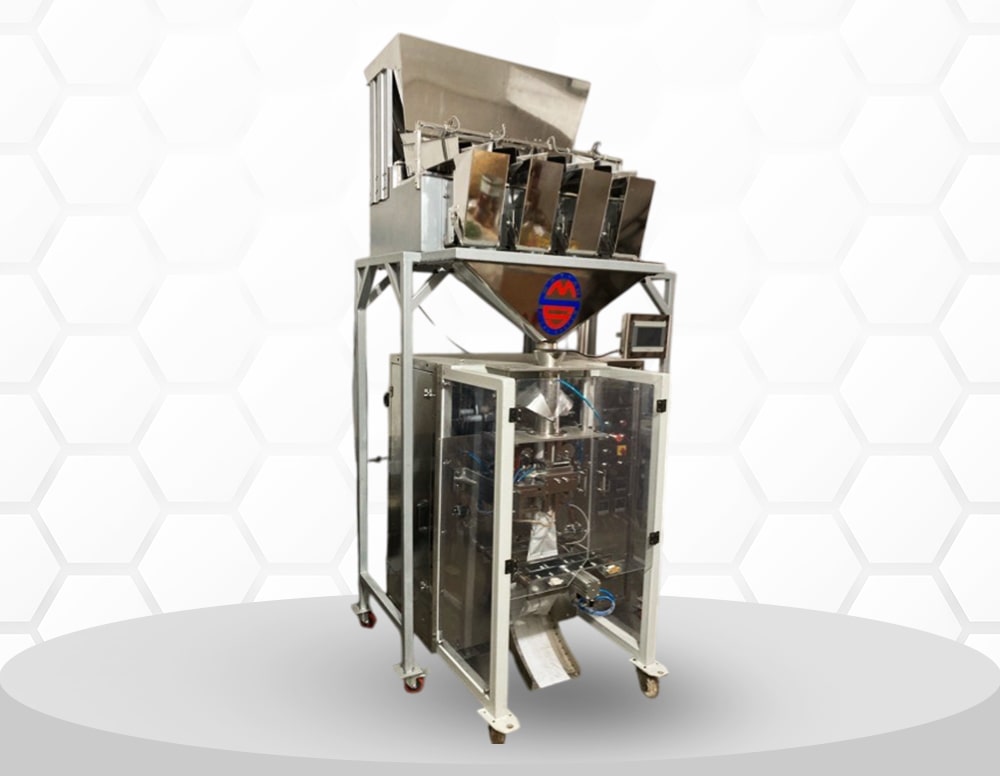

The 4 Head Linear Weigh Filler integrated with a VFFS system is a cost-effective and precise solution for medium-speed packaging of granular and dry products. It operates using independent linear feeding channels with vibration-based dosing to ensure accurate and consistent weighing. Ideal for businesses packing pulses, seeds, and dry snacks, this machine delivers reliability, efficiency, and hygienic operation in compact form.
| Particular | Details |
|---|---|
| No. Of Filling Head | 04 Nos. |
| No. Of Vibrator | 04 Nos. |
| No of vibrating tracks | 1 or 2 (depends on your product) |
| Weighing Range | 10gm. To 2 Kg. *** |
| Bucket Capacity | 3.5 LTR to 22 LTR*** |
| Hopper Capacity | 90 LTR. (hopper extension optional) |
| Speed | Up-to 30 Wpm (WPM = Weighing Per Minute)*** |
| Accuracy | 1 - 2 gm. FS *** |
| Power Supply | 230v A/C +/- 10% 50hz (Single Phase) |
| Operating System | HMI (7.0 Inch Display In Color) |
| Control System | MCU |
| Machine Weight | 250 Kg. Approx. |
| Machine Dimension | _____ x _____ x _____ [L x B x H] |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | |
