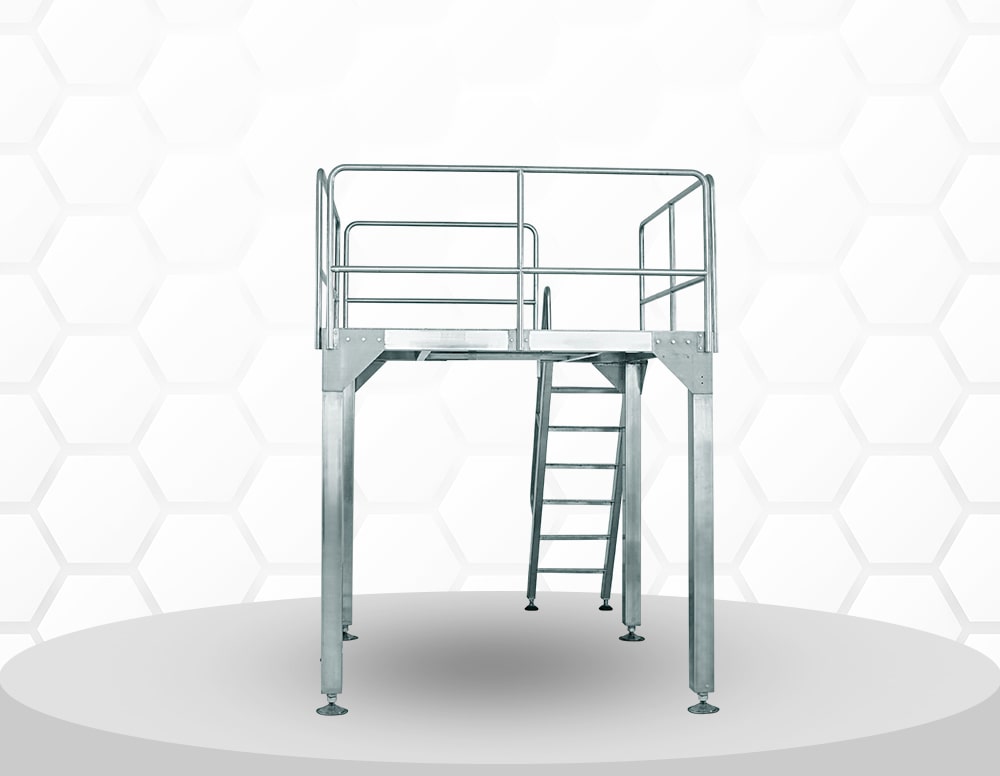

The Gantry Support Platform provides a safe and stable structure to mount multi-head weigh fillers above vertical form-fill-seal (VFFS) packaging systems. It ensures accessibility, load-bearing capacity, and compliance with hygiene and safety standards.
| Particular | Details | |
|---|---|---|
| Material | MS (powder-coated or painted) / SS304 (optional) | |
| Platform Height | 2.5 – 4 meters (customizable as per requirement) | |
| Load Capacity | Up to 5000 kg | |
| Structure | Modular bolted or welded | |
| Access | Staircase with railing | |
| Vibration Isolation | Optional rubber dampers | |
| Machine weight | ||
| Machine Dimensions | ||
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
