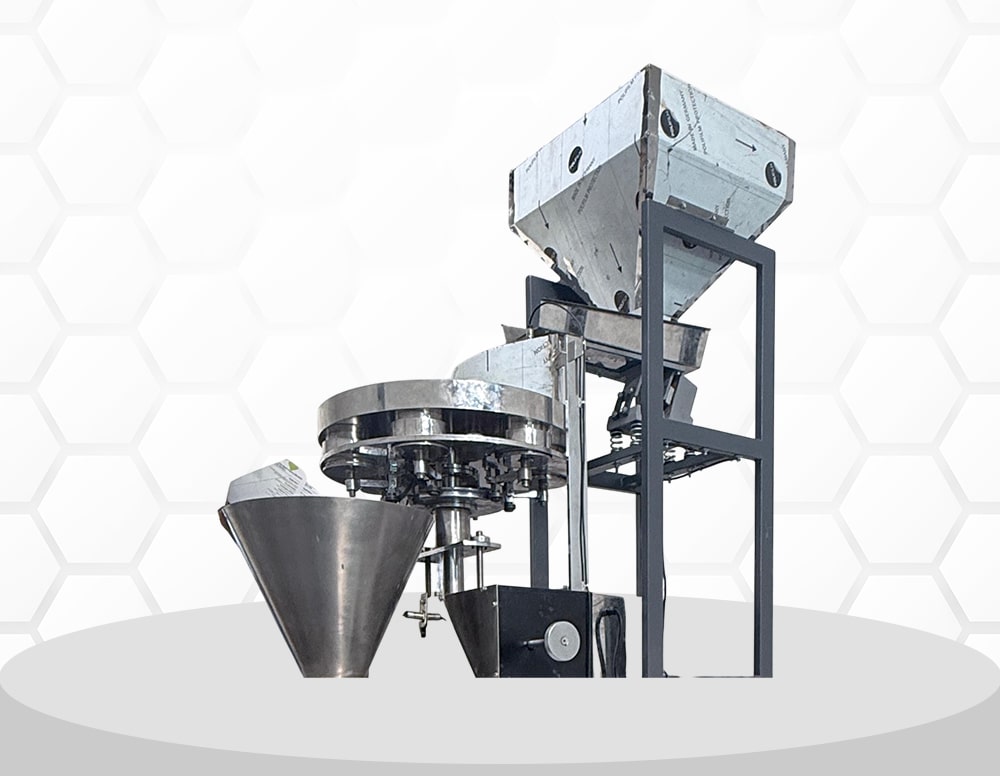

The Semi Auto Cup Filler is a volumetric filling machine ideal for free-flowing powders and granules. It operates on the principle of volume-based measurement using adjustable cups, making it a simple yet highly effective solution for consistent filling. Designed for flexibility, this machine is perfect for packing spices, grains, powders, and similar products in small to medium-scale operations.
| Parameter | Details | |
|---|---|---|
| Filling Mechanism | Volumetric cup-based | |
| Filling Range | 10g – 5kg (with diff. cup adjustment and sets) | |
| Accuracy | ±2% | |
| Output Speed | Up to 15–25 fills/min | |
| Power Supply | 230V, 50Hz, Single Phase | |
| Power Consumption | ~1.2 kW | |
| Control Type | Manual or semi-automatic | |
| Machine Material | SS304 (contact parts) | |
| Optional Attachments | Vibratory tray, footswitch, collection chute | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
