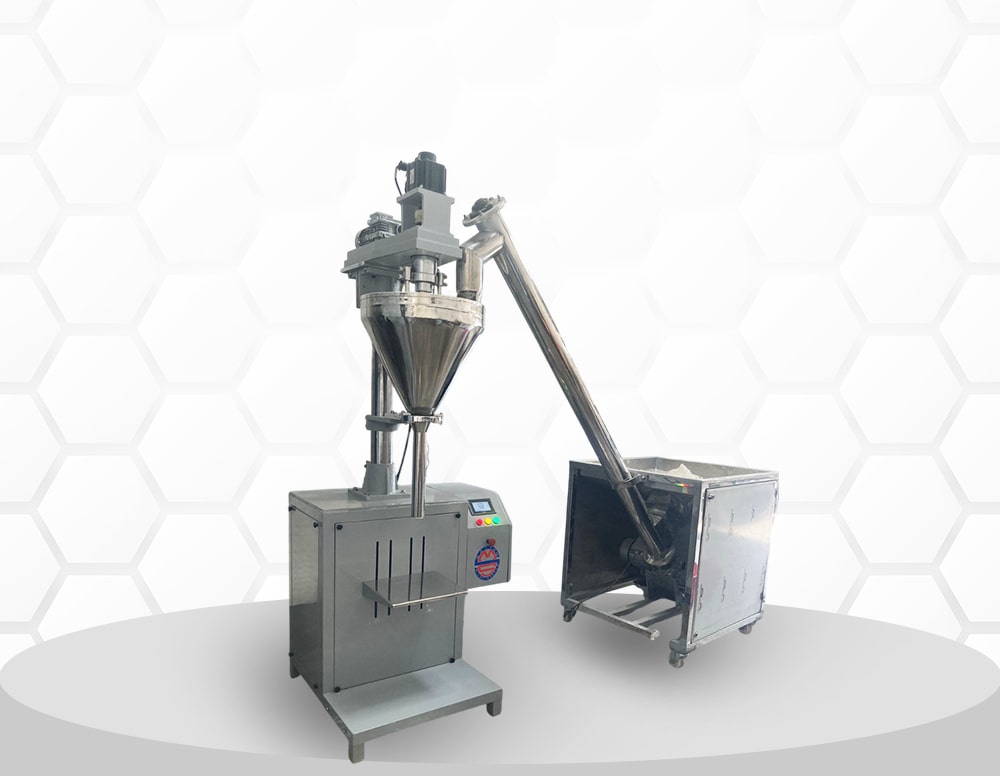

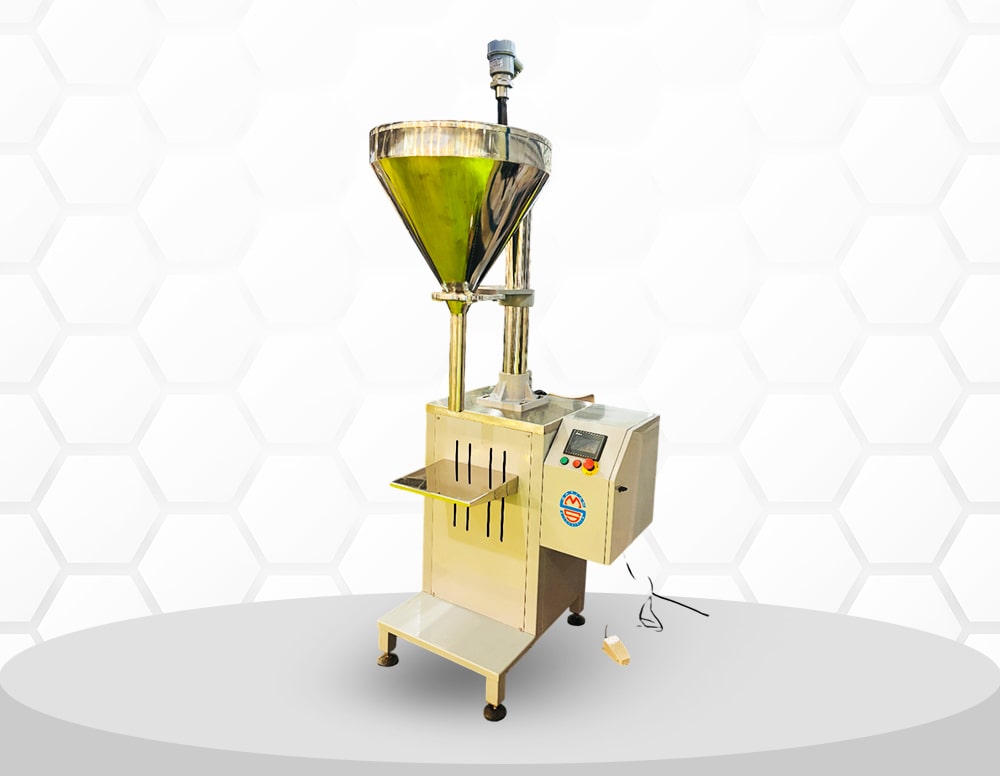

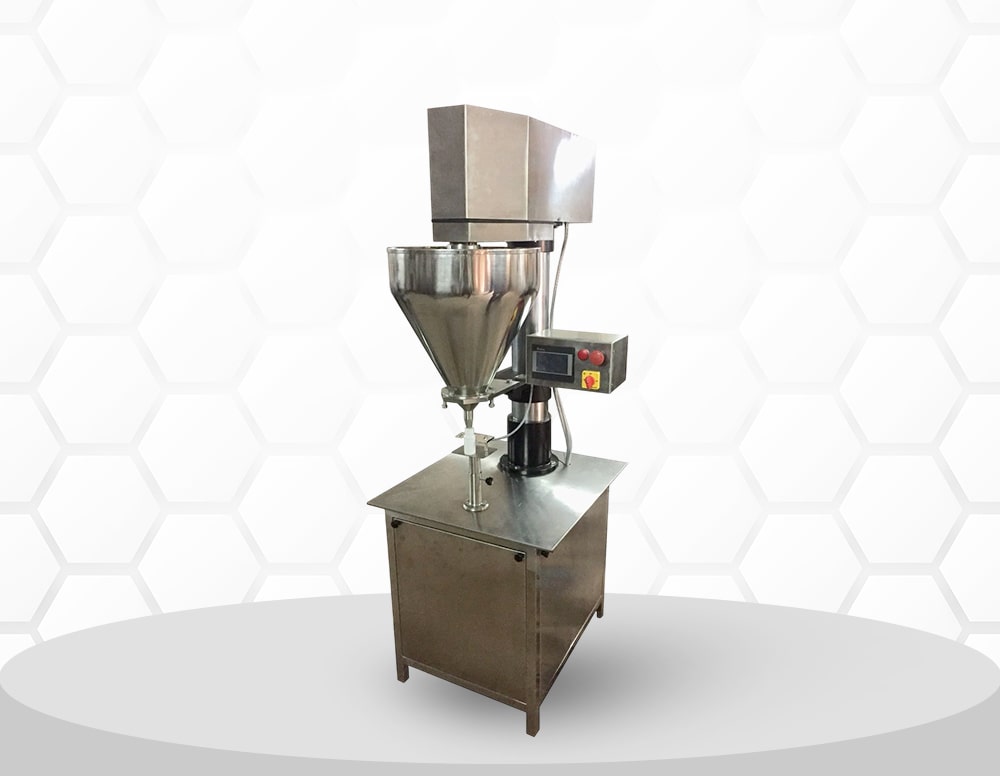

The Semi Auto Auger Filler is a precise and reliable filling machine specifically designed for fine and semi-fine powders. Using an auger screw mechanism, it ensures accurate dosing of products like flour, spices, talcum powder, protein powders, and pharmaceutical powders. This user-friendly machine is perfect for businesses needing consistent and clean fills without dust or spillage.
| Parameter | Details | |
|---|---|---|
| Filling Range | 10g - 10kg*** | |
| Accuracy | ±1% | |
| Filling Mechanism | Servo-driven auger screw | |
| Output Speed | Up to 10-20 fills/min (product dependent) | |
| Power Supply | 230V, 50Hz, Single Phase | |
| Power Consumption | ~1.5 kW | |
| Control System | PLC with touchscreen HMI | |
| Hopper Capacity | 25-35 liters | |
| Machine Material | SS304 (contact parts) | |
| Optional Features | Dust extraction system, foot switch, stirrer | |
| *** depends on nature and flow property of product to be packed, pouch size, volume to be filler and its ambient nature at the time of filling and model selection | ||
